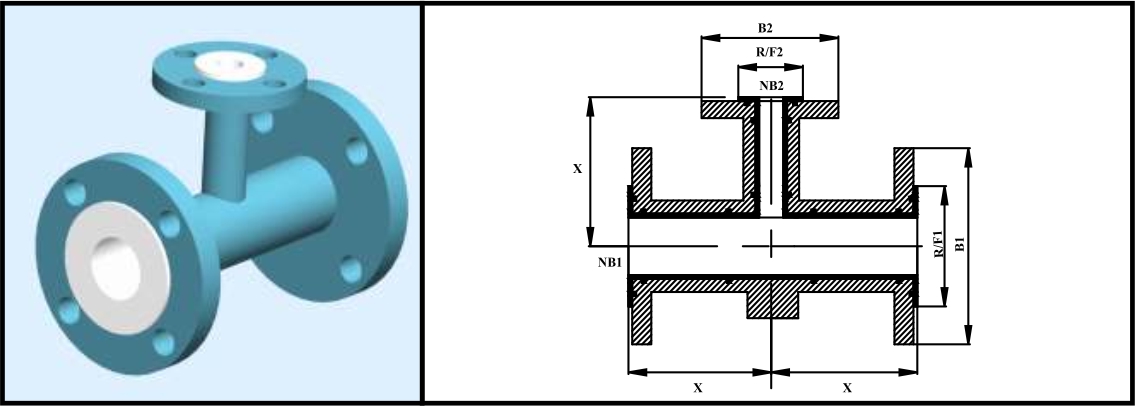

LINED UNEQUAL TEE
| Nominal Bore (NB) | Body (NB 1) | Body (NB 2) | Center Line to Face (X) | |||||
|---|---|---|---|---|---|---|---|---|
| NB1 | NB2 | Flange OD B1 | Raised Face R/F1 | Flange OD B2 | Raised Face R/F2 | |||
| mm | inch | mm | inch | mm | mm | mm | mm | mm |
| 40 | 1.5 | 25 | 1 | 127.0 | 73 | 108.0 | 51 | 102 |
| 50 | 2 | 25 | 1 | 152.4 | 92 | 108.0 | 51 | 114 |
| 50 | 2 | 40 | 1.5 | 152.4 | 92 | 127.0 | 73 | 114 |
| 80 | 3 | 25 | 1 | 190.5 | 127 | 108.0 | 5 | 140 |
| 80 | 3 | 40 | 1.5 | 190.5 | 127 | 127.0 | 73 | 140 |
| 80 | 3 | 50 | 2 | 190.5 | 127 | 152.4 | 92 | 140 |
| 100 | 4 | 25 | 1 | 228.6 | 157 | 108.0 | 51 | 165 |
| 100 | 4 | 40 | 1.5 | 228.6 | 157 | 127.0 | 73 | 165 |
| 100 | 4 | 50 | 2 | 228.6 | 157 | 152.4 | 92 | 165 |
| 100 | 4 | 80 | 3 | 228.6 | 157 | 190.5 | 127 | 165 |
| 150 | 6 | 25 | 1 | 279.4 | 216 | 108.0 | 51 | 203 |
| 150 | 6 | 40 | 1.5 | 279.4 | 216 | 127.0 | 73 | 203 |
| 150 | 6 | 50 | 2 | 279.4 | 216 | 152.4 | 92 | 203 |
| 150 | 6 | 80 | 3 | 279.4 | 216 | 190.5 | 127 | 203 |
| 150 | 6 | 100 | 4 | 279.4 | 216 | 228.6 | 157 | 203 |
HOUSING MATERIAL
Made from Is 2062 Plates
Pipe as per ASTM A 106 Gr.B
SG Iron as per IS 1865-199
FEP
OPTIONS
Rotating, Fixed On/Off Center DIN PN 10/16, BS 10, ASME 300 Mixed
Stainless Steel
PFA
Earthing Studs / Lugs Vent Extensions
Non Standard Dimensions
DESIGN SPECIFICATION
As per ANSI B 16.5/B 16.4
As per ANSI B 16.5 # 15
3 to 5 mm
Other Flange Drilling like DIN PN 2632/2633, BS 10 Table D, E or F are also available on request Sizes above 6” are fabricated from pipe
TEST & INSPECTION DATA
20 kg/cm2 After Lining
15 KV D.C. After Lining
