300# Gasket
Made from PTFE / TEFLON
Solid PTFE Ring Gaskets. Excellent corrosion resistance, high pressure resistance, easy to use, soft and is ideal for enamel, glass, and especially rough and special shaped sealing.
Excellent resistance to almost all solvents,caustics and acids
- PTFE melting point is 327°C.
- PTFE Service Temp is up to 200°C.
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
NOTE | ||
---|---|---|
TYPE | SOLID RING | |
DESIGN | RAISE FACE | |
THICKNESS | 1.5 / 2 / 3 / 5 MM | |
DIMENSION STD | 300# / ASME B16.21 | |
MOC | VIRIGN PTFE / TEFLON |
Sr. No. | SIZE | ASA 300#, ASME B16.21 | THK (mm) | ||
---|---|---|---|---|---|
Inch | MM | OD | ID | ||
1 | ½” | 15 | 54 | 21 | 1.5 / 2 / 3 / 5 |
2 | ¾” | 20 | 66 | 27 | 1.5 / 2 / 3 / 5 |
3 | 1” | 25 | 73 | 34 | 1.5 / 2 / 3 / 5 |
4 | 1.5” | 40 | 95 | 48 | 1.5 / 2 / 3 / 5 |
5 | 2” | 50 | 111 | 60 | 1.5 / 2 / 3 / 5 |
6 | 2.5” | 65 | 127 | 76 | 1.5 / 2 / 3 / 5 |
7 | 3” | 80 | 149 | 89 | 1.5 / 2 / 3 / 5 |
8 | 4” | 100 | 181 | 114 | 1.5 / 2 / 3 / 5 |
9 | 5” | 125 | 216 | 140 | 1.5 / 2 / 3 / 5 |
10 | 6” | 150 | 251 | 168 | 1.5 / 2 / 3 / 5 |
11 | 8” | 200 | 308 | 219 | 1.5 / 2 / 3 / 5 |
12 | 10” | 250 | 362 | 273 | 1.5 / 2 / 3 / 5 |
13 | 12” | 300 | 422 | 324 | 1.5 / 2 / 3 / 5 |
14 | 14” | 350 | 489 | 356 | 1.5 / 2 / 3 / 5 |
15 | 16” | 400 | 546 | 406 | 1.5 / 2 / 3 / 5 |
16 | 18” | 450 | 600 | 457 | 1.5 / 2 / 3 / 5 |
17 | 20” | 500 | 657 | 508 | 1.5 / 2 / 3 / 5 |
18 | 22” | 550 | 698 | 560 | 1.5 / 2 / 3 / 5 |
19 | 24” | 600 | 782 | 610 | 1.5 / 2 / 3 / 5 |
Made from EXPANDED PTFE / TEFLON
Expanded PTFE Ring Gaskets. Excellent corrosion resistance, high pressure resistance, easy to use, soft and is ideal for enamel, glass,and especially rough and special shaped sealing.
Excellent resistance to almost all solvents, caustics and acids.
- PTFE melting point is 327°C
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
NOTE | ||
---|---|---|
TYPE | SOLID EXPANDED RING | |
DESIGN | RAISE FACE | |
THICKNESS | 3 / 5 MM | |
DIMENSION STD | 300# / ASME B16.21 | |
MOC | VIRIGN EXPANDED PTFE / TEFLON |
Sr. No. | SIZE | ASA 300#, ASME B16.21 | THK (mm) | ||
---|---|---|---|---|---|
Inch | MM | OD | ID | ||
1 | ½” | 15 | 54 | 21 | 3 / 5 |
2 | ¾” | 20 | 66 | 27 | 3 / 5 |
3 | 1” | 25 | 73 | 34 | 3 / 5 |
4 | 1.5” | 40 | 95 | 48 | 3 / 5 |
5 | 2” | 50 | 111 | 60 | 3 / 5 |
6 | 2.5” | 65 | 127 | 76 | 3 / 5 |
7 | 3” | 80 | 149 | 89 | 3 / 5 |
8 | 4” | 100 | 181 | 114 | 3 / 5 |
9 | 5” | 125 | 216 | 140 | 3 / 5 |
10 | 6” | 150 | 251 | 168 | 3 / 5 |
11 | 8” | 200 | 308 | 219 | 3 / 5 |
12 | 10” | 250 | 362 | 273 | 3 / 5 |
13 | 12” | 300 | 422 | 324 | 3 / 5 |
14 | 14” | 350 | 489 | 356 | 3 / 5 |
15 | 16” | 400 | 546 | 406 | 3 / 5 |
16 | 18” | 450 | 600 | 457 | 3 / 5 |
17 | 20” | 500 | 657 | 508 | 3 / 5 |
18 | 22” | 550 | 698 | 560 | 3 / 5 |
19 | 24” | 600 | 782 | 610 | 3 / 5 |
Envelope Made from PTFE This is a high-performance machined PTFE Envelope Gasket, with insert either Champion Style 20 (Asbestos) or Champion Style AF120 (Non-Asbestos) Used in all industries for its heat protection & Chemical Resistance.
Asbestos: Champion Style 20 (Asbestos) / Ferolite 333
Non-Asbestos: Champion Style AF120 (Non-Asbestos) / Ferolite NAM 39.
Design Available:Split Type -”V”Shape / Mill type -“U”Shape
- PTFE melting point is 327°C.
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
NOTE | ||
---|---|---|
TYPE | “V” SHPE (SPLIT) / “U” SHAPE (MILL) | |
DESIGN | RAISE FACE / RING GASKET | |
THICKNESS | 3 / 5 MM – EXTRA THK AVAILABLE | |
DIMENSION STD | 150# / ASME B16.21 | |
MOC | PTFE ENVELOPE VIRGIN Asbestos : CAF Champion Style 20 or Ferolite 333 Non-Asbestos : Champion Style AF120 or Ferolite NAM 39 |
Sr. No. | SIZE | ASA 150#, ASME B16.21 | THK (mm) | ||
---|---|---|---|---|---|
Inch | MM | OD | ID | ||
1 | ½” | 15 | 54 | 21 | 3 / 5 |
2 | ¾” | 20 | 66 | 27 | 3 / 5 |
3 | 1” | 25 | 73 | 34 | 3 / 5 |
4 | 1.5” | 40 | 95 | 48 | 3 / 5 |
5 | 2” | 50 | 111 | 60 | 3 / 5 |
6 | 2.5” | 65 | 127 | 76 | 3 / 5 |
7 | 3” | 80 | 149 | 89 | 3 / 5 |
8 | 4” | 100 | 181 | 114 | 3 / 5 |
9 | 5” | 125 | 216 | 140 | 3 / 5 |
10 | 6” | 150 | 251 | 168 | 3 / 5 |
11 | 8” | 200 | 308 | 219 | 3 / 5 |
12 | 10” | 250 | 362 | 273 | 3 / 5 |
13 | 12” | 300 | 422 | 324 | 3 / 5 |
14 | 14” | 350 | 489 | 356 | 3 / 5 |
15 | 16” | 400 | 546 | 406 | 3 / 5 |
16 | 18” | 450 | 600 | 457 | 3 / 5 |
17 | 20” | 500 | 657 | 508 | 3 / 5 |
18 | 22” | 550 | 698 | 533 | 3 / 5 |
19 | 24” | 600 | 782 | 610 | 3 / 5 |
CAF / AF Made From: Champion / Ferolite
- Champion Style 20 Steam
- Champion Style 20 Metallic
- Champion Style 54 Super
- Champion Style 54 Super Metallic
- Champion Style 59 OIL
- Champion Style 60 Acid
- AF110, AF120, AF139
- Ferolite NAM 333
- Ferolite NAM 39
NOTE | ||
---|---|---|
TYPE | RING TYPE | |
DESIGN | RAISE FACE / RING GASKET | |
THICKNESS | 1 / 2 / 3 / 5 MM – EXTRA THK AVAILABLE | |
DIMENSION STD | 300# / ASME B16.21 | |
MOC | Asbestos (CAF) & Non- Asbestos(AF) From Champion and Ferilite Make |
Sr. No. | SIZE | ASA 300#, ASME B16.21 | THK (mm) | ||
---|---|---|---|---|---|
Inch | MM | OD | ID | ||
1 | ½” | 15 | 48 | 21 | 1.5 / 2 / 3 / 5 |
2 | ¾” | 20 | 57 | 27 | 1.5 / 2 / 3 / 5 |
3 | 1” | 25 | 66 | 34 | 1.5 / 2 / 3 / 5 |
4 | 1.5” | 40 | 85 | 48 | 1.5 / 2 / 3 / 5 |
5 | 2” | 50 | 104 | 60 | 1.5 / 2 / 3 / 5 |
6 | 2.5” | 65 | 123 | 76 | 1.5 / 2 / 3 / 5 |
7 | 3” | 80 | 137 | 89 | 1.5 / 2 / 3 / 5 |
8 | 4” | 100 | 174 | 114 | 1.5 / 2 / 3 / 5 |
9 | 5” | 125 | 197 | 140 | 1.5 / 2 / 3 / 5 |
10 | 6” | 150 | 222 | 168 | 1.5 / 2 / 3 / 5 |
11 | 8” | 200 | 279 | 219 | 1.5 / 2 / 3 / 5 |
12 | 10” | 250 | 339 | 273 | 1.5 / 2 / 3 / 5 |
13 | 12” | 300 | 409 | 324 | 1.5 / 2 / 3 / 5 |
14 | 14” | 350 | 450 | 356 | 1.5 / 2 / 3 / 5 |
15 | 16” | 400 | 514 | 406 | 1.5 / 2 / 3 / 5 |
16 | 18” | 450 | 549 | 457 | 1.5 / 2 / 3 / 5 |
17 | 20” | 500 | 606 | 508 | 1.5 / 2 / 3 / 5 |
18 | 22” | 550 | 640 | 533 | 1.5 / 2 / 3 / 5 |
19 | 24” | 600 | 718 | 610 | 1.5 / 2 / 3 / 5 |

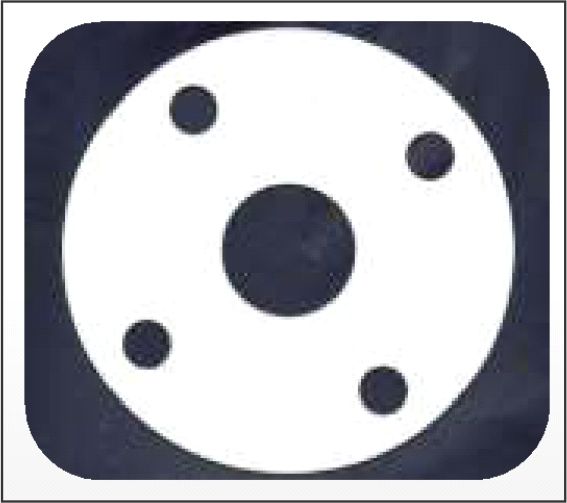

Made from PTFE / TEFLON
Solid PTFE Full Face Gaskets. Excellent corrosion resistance, high pressure resistance, easy to use, soft and is ideal for enamel, glass, and especially rough and special shaped sealing.
Excellent resistance to almost all solvents, caustics and acids.
- PTFE melting point is 327°C
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
NOTE | ||
---|---|---|
TYPE | SOLID TYPE | |
DESIGN | FULL FACE | |
THICKNESS | 1.5 / 2 / 3 / 5 MM | |
DIMENSION STD | 300# / ASME B16.21 | |
MOC | VIRIGN PTFE / TEFLON |
Sr. No. | SIZE | ASA 300#, ASME B16.21 FULL FACE | THK (mm) | |||||
---|---|---|---|---|---|---|---|---|
Inch | MM | OD | ID | No. of Holes | Hole Dia | BOLT PCD | ||
1 | ½” | 15 | 95 | 21 | 4 | 15.9 | 66.7 | 1.5 / 2 / 3 / 5 |
2 | ¾” | 20 | 115 | 27 | 4 | 19.0 | 82.5 | 1.5 / 2 / 3 / 5 |
3 | 1” | 25 | 123 | 34 | 4 | 19.0 | 88.9 | 1.5 / 2 / 3 / 5 |
4 | 1.5” | 40 | 155 | 48 | 4 | 19.0 | 114.3 | 1.5 / 2 / 3 / 5 |
5 | 2” | 50 | 165 | 60 | 4 | 22.2 | 127.0 | 1.5 / 2 / 3 / 5 |
6 | 2.5” | 65 | 190 | 76 | 4 | 22.2 | 149.2 | 1.5 / 2 / 3 / 5 |
7 | 3” | 80 | 209 | 89 | 4 | 22.2 | 168.3 | 1.5 / 2 / 3 / 5 |
8 | 4” | 100 | 251 | 114 | 8 | 22.2 | 200.0 | 1.5 / 2 / 3 / 5 |
9 | 5” | 125 | 275 | 140 | 8 | 22.2 | 234.9 | 1.5 / 2 / 3 / 5 |
10 | 6” | 150 | 315 | 168 | 12 | 22.2 | 269.9 | 1.5 / 2 / 3 / 5 |
11 | 8” | 200 | 380 | 219 | 12 | 25.4 | 330.2 | 1.5 / 2 / 3 / 5 |
12 | 10” | 250 | 442 | 273 | 16 | 28.6 | 387.3 | 1.5 / 2 / 3 / 5 |
13 | 12” | 300 | 520 | 324 | 16 | 31.7 | 450.8 | 1.5 / 2 / 3 / 5 |
14 | 14” | 350 | 584 | 356 | 20 | 31.7 | 514.3 | 1.5 / 2 / 3 / 5 |
15 | 16" | 400 | 645 | 406 | 20 | 34.9 | 571.5 | 1.5 / 2 / 3 / 5 |
16 | 18" | 450 | 710 | 457 | 24 | 34.9 | 628.5 | 1.5 / 2 / 3 / 5 |
17 | 20" | 500 | 770 | 508 | 24 | 34.9 | 685.8 | 1.5 / 2 / 3 / 5 |
18 | 22" | 550 | 840 | 560 | 24 | 34.9 | 749.3 | 1.5 / 2 / 3 / 5 |
19 | 24" | 600 | 910 | 610 | 24 | 41.3 | 812.8 | 1.5 / 2 / 3 / 5 |
Made from EXPANDED PTFE / TEFLON
Expanded PTFE Full-Face Gaskets.
Excellent corrosion resistance,high pressure resistance, easy to use,soft and is ideal for enamel, glass, and especially rough and special shaped sealing.
Excellent resistance to almost all solvents, caustics and acids.
- PTFE melting point is 327°C
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
NOTE | ||
---|---|---|
TYPE | SOLID EXPANDED RING | |
DESIGN | FULL FACE | |
THICKNESS | 3 / 5 MM | |
DIMENSION STD | 300# / ASME B16.21 | |
MOC | VIRIGN EXPANDED PTFE / TEFLON |
Sr. No. | SIZE | ASA 300#, ASME B16.21 | THK (mm) | |||||
---|---|---|---|---|---|---|---|---|
Inch | MM | OD | ID | No. of Holes | Hole Dia | BOLT PCD | ||
1 | ½” | 15 | 95 | 21 | 4 | 15.9 | 66.7 | 3 / 5 |
2 | ¾” | 20 | 115 | 27 | 4 | 19.0 | 82.5 | 3 / 5 |
3 | 1” | 25 | 123 | 34 | 4 | 19.0 | 88.9 | 3 / 5 |
4 | 1.5” | 40 | 155 | 48 | 4 | 19.0 | 114.3 | 3 / 5 |
5 | 2” | 50 | 165 | 60 | 8 | 22.2 | 127.0 | 3 / 5 |
6 | 2.5” | 65 | 190 | 76 | 8 | 22.2 | 149.2 | 3 / 5 |
7 | 3” | 80 | 209 | 89 | 8 | 22.2 | 168.3 | 3 / 5 |
8 | 4” | 100 | 251 | 114 | 8 | 22.2 | 200.0 | 3 / 5 |
9 | 5” | 125 | 275 | 140 | 8 | 22.2 | 234.9 | 3 / 5 |
10 | 6” | 150 | 315 | 168 | 12 | 22.2 | 269.9 | 3 / 5 |
11 | 8” | 200 | 380 | 219 | 12 | 25.4 | 330.2 | 3 / 5 |
12 | 10” | 250 | 442 | 273 | 16 | 28.6 | 387.3 | 3 / 5 |
13 | 12” | 300 | 520 | 324 | 16 | 31.7 | 450.8 | 3 / 5 |
14 | 14” | 350 | 584 | 356 | 20 | 31.7 | 514.3 | 3 / 5 |
15 | 16" | 400 | 645 | 406 | 20 | 34.9 | 571.5 | 3 / 5 |
16 | 18" | 450 | 710 | 457 | 24 | 34.9 | 628.5 | 3 / 5 |
17 | 20" | 500 | 770 | 508 | 24 | 34.9 | 685.8 | 3 / 5 |
18 | 22" | 550 | 840 | 560 | 24 | 34.9 | 749.3 | 3 / 5 |
19 | 24" | 600 | 910 | 610 | 24 | 41.3 | 812.8 | 3 / 5 |
Envelope Made from PTFE This is a high-performance machined PTFE Envelope Gasket, with insert either Champion Style 20 (Asbestos) or Champion Style AF120 (Non-Asbestos) Used in all industries for its heat protection & Chemical Resistance.
Insert Available:
- Asbestos: Champion Style 20 (Asbestos) / Feroli te 333
- Non-Asbestos: Champion Style AF120 (Non- Asbestos) / Ferolite NAM 39.
- Rubber:PVC YELLOW / NATURAL RUBBER BLACK
- Design Available: Split Type -”V”Shape / Mill type -“U” Shape
- PTFE melting point is 327°C.
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
NOTE | ||
---|---|---|
TYPE | “V”SHPE (SPLIT) / “U”SHAPE (MILL) | |
DESIGN | PTFE ENVELOPE RAISE FACE INSERT FULL FACE / BLIND GASKET | |
THICKNESS | 3 / 5 MM – EXTRA THK AVAILABLE | |
DIMENSION STD | 300# / ASME B16.21 | |
MOC | PTFE ENVELOPE VIRGIN Asbestos : CAF Champion Style 20 or Ferolite 333 Non- Asbestos: Champion Style AF120 or Ferolite NAM 39 Rubber: PVC YELLOW / NATURAL RUBBER BLACK |
Sr. No. | SIZE | ASA 300#, B16.21, FULL FACE | THK (mm) | |||||
---|---|---|---|---|---|---|---|---|
Inch | MM | OD | ID | No. of Holes | Hole Dia | BOLT PCD | ||
1 | ½” | 15 | 95 | 21 | 4 | 15.9 | 66.7 | 3 / 5 |
2 | ¾” | 20 | 115 | 27 | 4 | 19.0 | 82.5 | 3 / 5 |
3 | 1” | 25 | 123 | 34 | 4 | 19.0 | 88.9 | 3 / 5 |
4 | 1.5” | 40 | 155 | 48 | 4 | 19.0 | 114.3 | 3 / 5 |
5 | 2” | 50 | 165 | 60 | 8 | 22.2 | 127.0 | 3 / 5 |
6 | 2.5” | 65 | 190 | 76 | 8 | 22.2 | 149.2 | 3 / 5 |
7 | 3” | 80 | 209 | 89 | 8 | 22.2 | 168.3 | 3 / 5 |
8 | 4” | 100 | 251 | 114 | 8 | 22.2 | 200.0 | 3 / 5 |
9 | 5” | 125 | 275 | 140 | 8 | 22.2 | 234.9 | 3 / 5 |
10 | 6” | 150 | 315 | 168 | 12 | 22.2 | 269.9 | 3 / 5 |
11 | 8” | 200 | 380 | 219 | 12 | 28.6 | 387.3 | 3 / 5 |
12 | 10” | 250 | 442 | 273 | 16 | 28.6 | 387.3 | 3 / 5 |
13 | 12” | 300 | 520 | 324 | 16 | 31.7 | 450.8 | 3 / 5 |
14 | 14” | 350 | 584 | 356 | 20 | 31.7 | 514.3 | 3 / 5 |
15 | 16" | 400 | 645 | 406 | 20 | 34.9 | 571.5 | 3 / 5 |
16 | 18" | 450 | 710 | 457 | 24 | 34.9 | 628.5 | 3 / 5 |
17 | 20" | 500 | 770 | 508 | 24 | 34.9 | 685.8 | 3 / 5 |
18 | 22" | 550 | 840 | 560 | 24 | 34.9 | 749.3 | 3 / 5 |
19 | 24" | 600 | 910 | 610 | 24 | 41.3 | 812.8 | 3 / 5 |
CAF / AF Made From.: Champion / Ferolite
- Champion Style 20 Steam
- Champion Style 20 Metallic
- Champion Style 54 Super
- Champion Style 54 Super Metallic
- Champion Style 59 OIL
- Champion Style 60 Acid
- AF110, AF120, AF139
- Ferolite NAM 333
- Ferolite NAM 39/ PVC YELLOW / RUBBER BLACK
NOTE | ||
---|---|---|
TYPE | FLANGE TYPE | |
DESIGN | FULL FACE | |
THICKNESS | 1 / 2 / 3 / 5 MM – EXTRA THK AVAILABLE | |
DIMENSION STD | 300# / ASME B16.21 | |
MOC | Asbestos (CAF) & Non-Asbestos(AF) From Champion and Ferilite Make/ PVC YELLOW / RUBBER BLACK |
Sr. No. | SIZE | ASA 300#, B16.21, FULL FACE | THK (mm) | |||||
---|---|---|---|---|---|---|---|---|
Inch | MM | OD | ID | No. of Holes | Hole Dia | BOLT PCD | ||
1 | ½” | 15 | 95 | 21 | 4 | 15.9 | 66.7 | 1.5 / 2 / 3 / 5 |
2 | ¾” | 20 | 115 | 27 | 4 | 19.0 | 82.5 | 1.5 / 2 / 3 / 5 |
3 | 1” | 25 | 123 | 34 | 4 | 19.0 | 88.9 | 1.5 / 2 / 3 / 5 |
4 | 1.5” | 40 | 155 | 48 | 4 | 19.0 | 114.3 | 1.5 / 2 / 3 / 5 |
5 | 2” | 50 | 165 | 60 | 8 | 22.2 | 127.0 | 1.5 / 2 / 3 / 5 |
6 | 2.5” | 65 | 190 | 76 | 8 | 22.2 | 149.2 | 1.5 / 2 / 3 / 5 |
7 | 3” | 80 | 209 | 89 | 8 | 22.2 | 168.3 | 1.5 / 2 / 3 / 5 |
8 | 4” | 100 | 251 | 114 | 8 | 22.2 | 200.0 | 1.5 / 2 / 3 / 5 |
9 | 5” | 125 | 275 | 140 | 8 | 22.2 | 234.9 | 1.5 / 2 / 3 / 5 |
10 | 6” | 150 | 315 | 168 | 12 | 22.2 | 269.9 | 1.5 / 2 / 3 / 5 |
11 | 8” | 200 | 380 | 219 | 12 | 25.4 | 330.2 | 1.5 / 2 / 3 / 5 |
12 | 10” | 250 | 442 | 273 | 16 | 28.6 | 387.3 | 1.5 / 2 / 3 / 5 |
13 | 12” | 300 | 520 | 324 | 16 | 31.7 | 450.8 | 1.5 / 2 / 3 / 5 |
14 | 14” | 350 | 584 | 356 | 20 | 31.7 | 514.3 | 1.5 / 2 / 3 / 5 |
15 | 16" | 400 | 645 | 406 | 20 | 34.9 | 571.5 | 1.5 / 2 / 3 / 5 |
16 | 18" | 450 | 710 | 457 | 24 | 34.9 | 628.5 | 1.5 / 2 / 3 / 5 |
17 | 20" | 500 | 770 | 508 | 24 | 34.9 | 685.8 | 1.5 / 2 / 3 / 5 |
18 | 22" | 550 | 840 | 560 | 24 | 34.9 | 749.3 | 1.5 / 2 / 3 / 5 |
19 | 24" | 600 | 910 | 610 | 24 | 41.3 | 812.8 | 1.5 / 2 / 3 / 5 |
