GLR Gaskets - Glass Lined Reactor

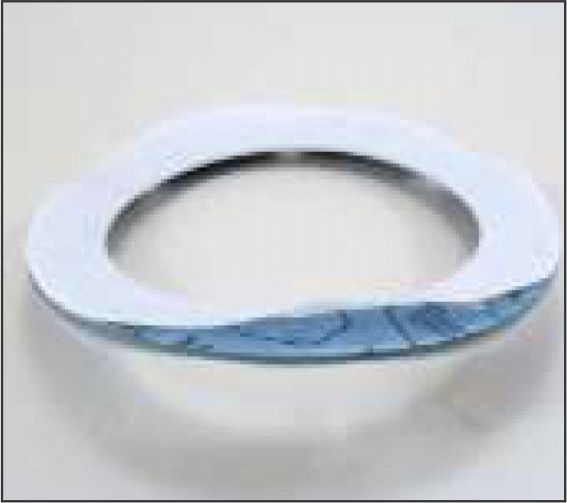

Envelope Made from PTFE This is a high-performance machined PTFE Envelope Gasket, with insert either Champion Style 20 (Asbestos) or Champion Style AF120 (Non-Asbestos) Used in all industries for its heat protection & Chemical Resistance.
- Asbestos: Champion Style 20 (Asbestos) / Ferolite 333
- Non-Asbestos: Champion Style AF120 (Non-Asbestos) / Ferolite NAM 39
- Ring : SS Corrugated Ring –1 to 1.5 MM
- PTFE melting point is 327°C.
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
| NOTE | ||
|---|---|---|
| TYPE | “U” SHAPE (MILL) | |
| DESIGN | RING GASKET/ ELIPTICAL SHAPE | |
| THICKNESS | 8.9 mm | |

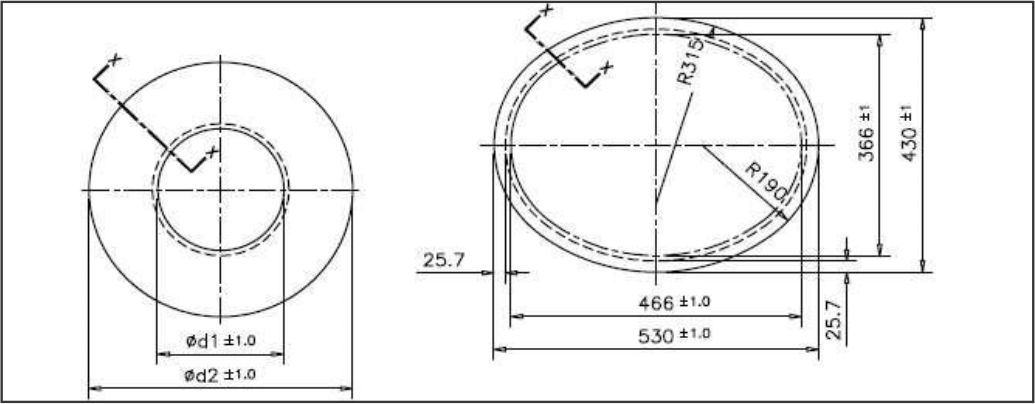

| DIMENSION STD | As per GLR Standard – Dimension as below | |
| MOC | PTFE ENVELOPE VIRGIN – Food Grade Asbestos : CAF Champion Style 20 or Ferolite 333 Non - Asbestos : Champion Style AF120 or Ferolite NAM 39 Ring : SS Corrugated Ring – 1 to 1.5 mm |
| Sr. No. | SIZE | GLR MANHOLE GASKET Dimension | NOTE | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | NB | d2, OD | d1, ID | "b" +/- 1.0 | Width | T1, SS ring | T2, Insert | THK | ||
| 1 | 350 X 450 | 530 X 430 | 466 X 366 | 32 | 1.5 | 3.2 | 8.9 | |||
| 2 | 18" | 450 | 555 | 464 | 39 | 45.5 | 1.5 | 3 | 10.9 | |
| 3 | 20" | 500 | 605 | 521 | 37.5 | 42 | 1.5 | 3 | 8.9 | |
| 4 | 24" | 600 | 705 | 617 | 37.5 | 44 | 1.5 | 3 | 10.9 | |
Envelope Made from PTFE This is a high - performance machined PTFE Envelope Gasket, with insert either Champion Style 20 (Asbestos) or Champion Style AF120 (Non-Asbestos) Used in all industries for its heat protection & Chemical Resistance.
- Asbestos: Champion Style 20 (Asbestos) / Ferolite 333
- Non-Asbestos: Champion Style AF120 (Non-Asbestos) / Ferolite NAM 39.
- Ring : SS Corrugated Ring – 1 to 1.5 mm
- Design Available: Mill type - “U” Shape
- PTFE melting point is 327°C
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
| NOTE | ||
|---|---|---|
| TYPE | “U” SHAPE (MILL) | |
| DESIGN | RING GASKET/ROUND SHAPE | |
| THICKNESS | As per GLR Standard | |
| DIMENSION STD | As per GLR Standard – Dimension as below | |
| MOC | PTFE ENVELOPE VIRGIN – Food Grade Asbestos: CAF Champion Style 20 or Ferolite 333 Non-Asbestos : Champion Style AF120 or Ferolite NAM 39 Ring : SS Corrugated Ring – 1 to 1.5 mm |

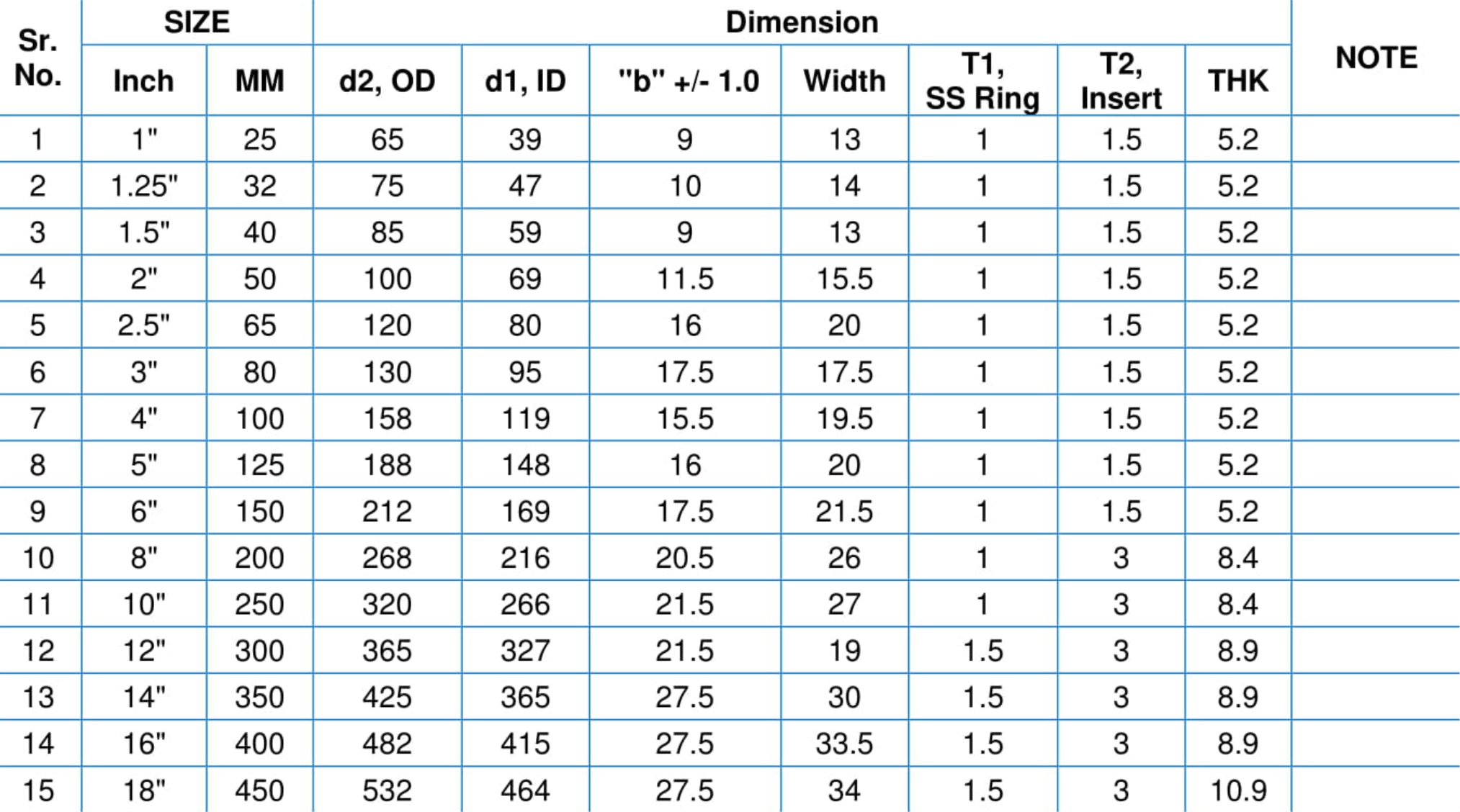

| Sr. No. | SIZE | Dimension | NOTE | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | MM | d2, OD | d1, ID | "b" +/-1.0 | Width | T1, SS Ring | T2, Insert | THK | ||
| 1 | 1" | 25 | 65 | 39 | 9 | 13 | 1 | 1.5 | 5.2 | |
Envelope Made from PTFE This is a high - performance machined PTFE Envelope Gasket, with insert either Champion Style 20 (Asbestos) or Champion Style AF120 (Non-Asbestos) Used in all industries for its heat protection & Chemical Resistance.
Asbestos: Champion Style 20 (Asbestos) / Ferolite 333
Non-Asbestos: Champion Style AF120 (Non- Asbestos) / Ferolite NAM 39.
Ring : SS Corrugated Ring – 1 to 1.5 mm
Design Available:Mill type - “U” Shape
- PTFE melting point is 327°C.
- PH Range: 0 to 14
- Temperature Range: -268C to +260C
| NOTE | ||
|---|---|---|
| TYPE | “U” SHAPE (MILL) | |
| DESIGN | RING GASKET / ROUND SHAPE | |
| THICKNESS | As per GLR Standard | |
| DIMENSION STD | As per GLR Standard – Dimension as below | |
| MOC | PTFE ENVELOPE VIRGIN– Food Grade Asbestos : CAF Champion Style 20 or Ferolite 333 Non-Asbestos : Champion Style AF120 or Ferolite NAM 39 Ring : SS Corrugated Ring – 1 to 1.5 mm |

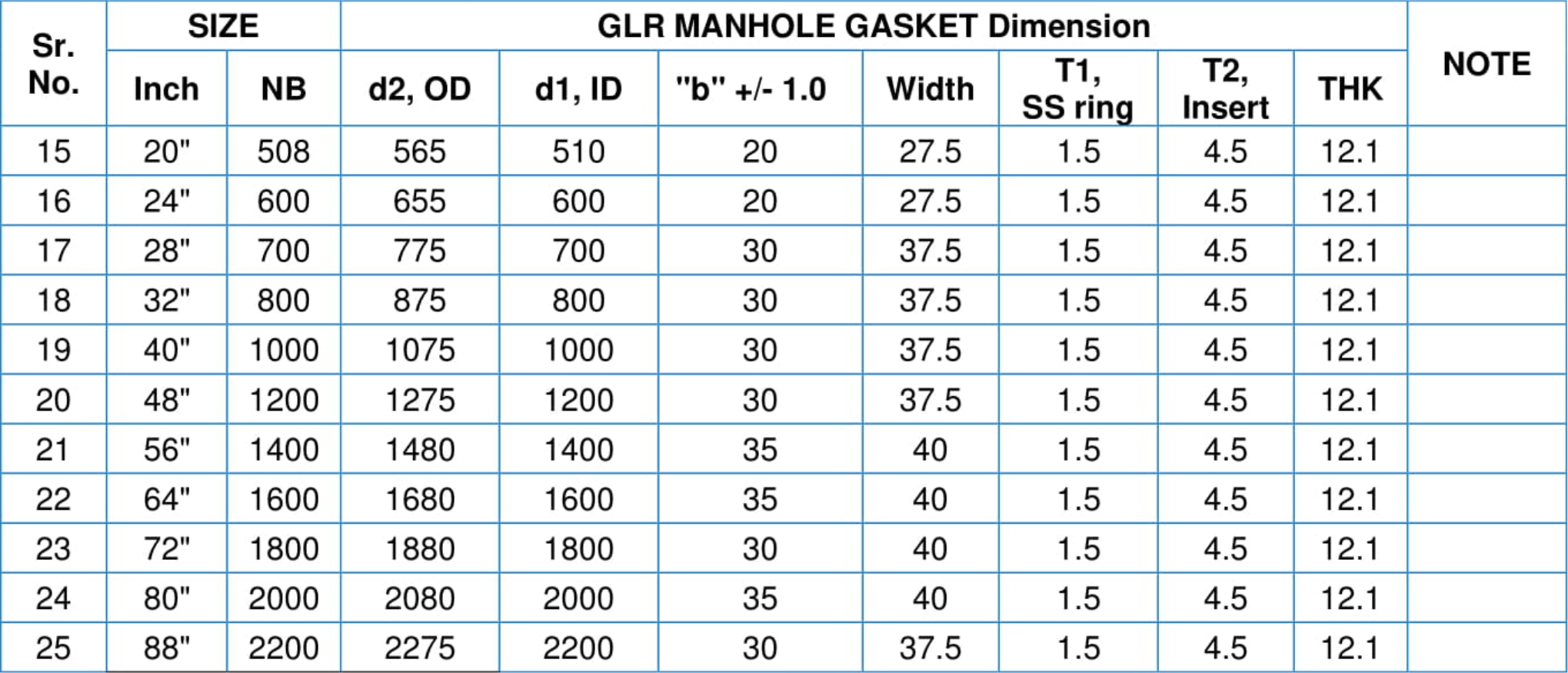

| Sr. No. | SIZE | GLR MANHOLE GASKET Dimension | NOTE | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Inch | NB | d2, OD | d1, ID | "b" +/- 1.0 | Width | T1,SS ring | T2,Insert | THK | NOTE |
| 15 | 20" | 508 | 565 | 510 | 20 | 27.5 | 1.5 | 4.5 | 12.1 |
