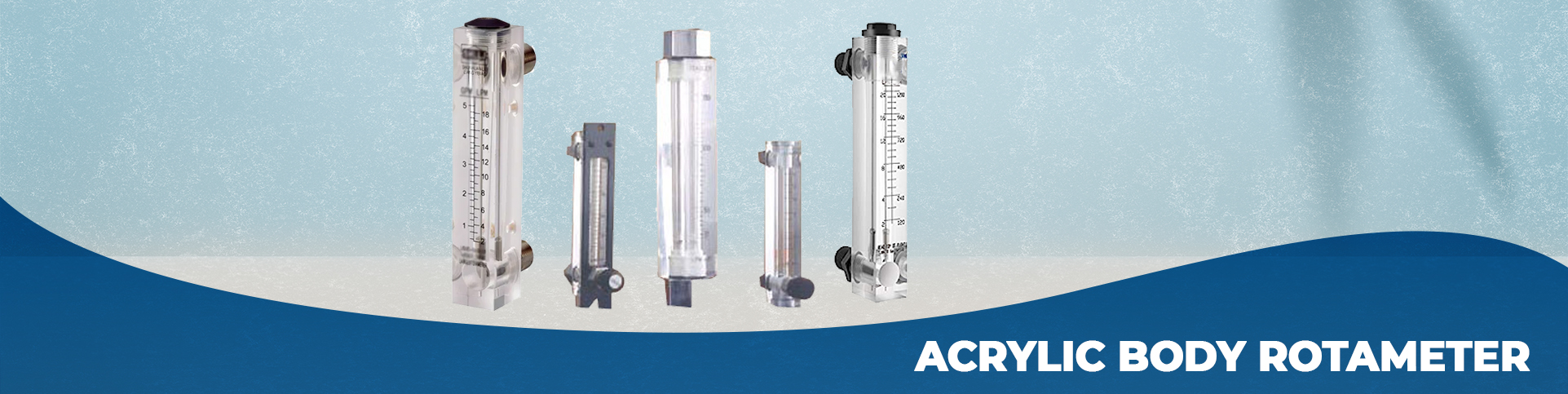

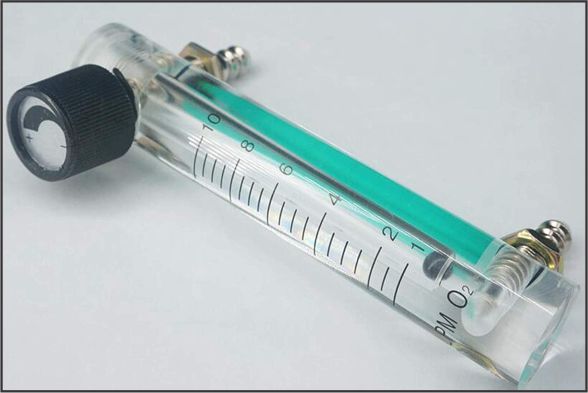

Acrylic Body Rotameter

“HETA” make Acrylic Body Rotameters are mainly used for Water / Salt Water, Air, Nitrogen, Hydrogen, Natural Gas application. These are integrally machined cut in acrylic body from imported transparent acrylic blocks sheets. These are also suited with flanged or screwed connections and several options of material for the wetted parts. All our products are developed as per industry norms, using premium raw material and latest technology.In addition to this, our products can be customized as per the specifications detailed by the customers.

Metering Tube Solid Acrylic Block.
Body Imported transparent acrylic block.
Wetted Parts M.S. / S.S. / P.P. / Teflon.
End Connection S.S. 304/316/PVC/PP/MS
Scale Engraved on body.
Packing Neoprene / Teflon / Silicon.
Model KiT/ABR
Temperature Max 60°C
Pressure Max 25 Kg/Cm²
Available sizes 1/8” to 100 NB
Flow Ranges 2 to 60,000 LPH of water at ambient temperature and 0.1 to 750 Nm³/hr of air at NTP
End Connection Screwed / Flanged / Hose Nipple
Orientation Bottom – Top / Rear – Rear
Accuracy ± 2% of FSD
Accessories High & low flow alarms and 4-20 mA output on your request.Digital on your request
