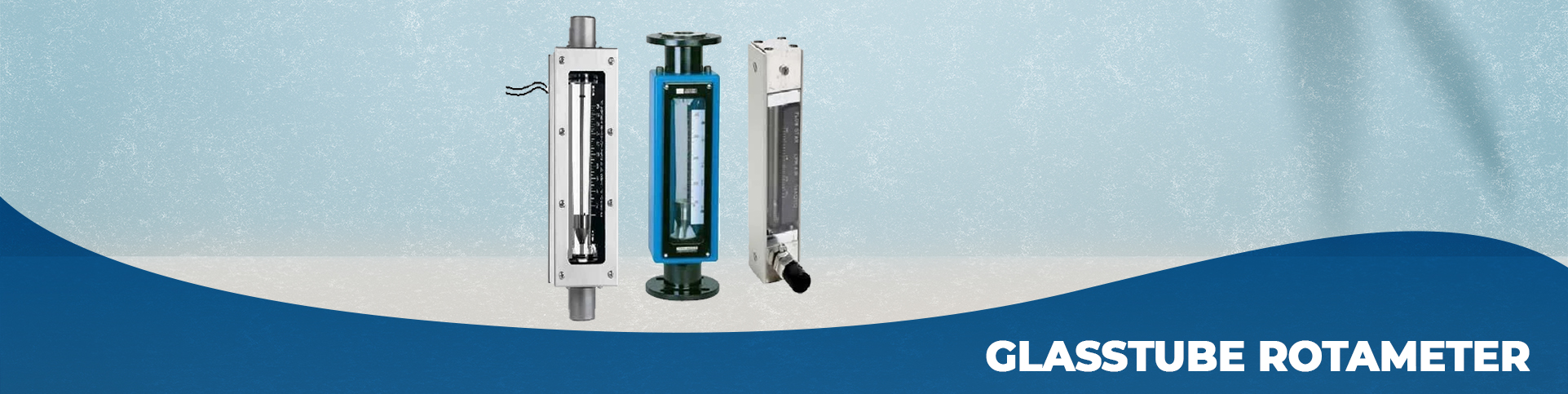

Glasstube Rotameter
Manufactures Variable Area Flowmeters (Rotameters) which are mainly used for Liquid & Gas applications for measurement of Rate of Flow indication. The Float moves up & down in the tapered Borosilicate Glass Tube with fluid flow from bottom to top. The Float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.
Material Of Construction
End fittings | MS, CS, SS304, SS316, CF8M, CF8,C.I. PTFE lined, C.I. SS lined, PVC and Any other desired material subject to its Availability. |
---|---|

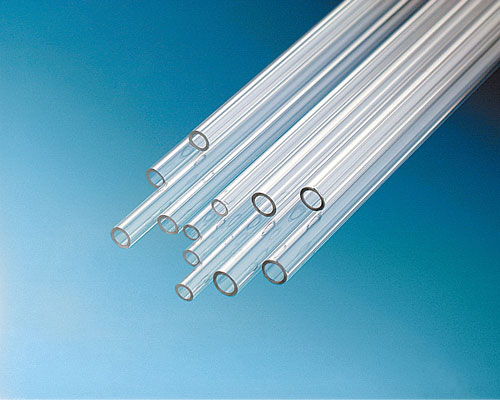

Tube | Borosilicate Glass. |
Float | SS 316, PTFE and other on request. |
Packing | Neoprene, PTFE, Silicon, Viton. |
Frame & Cover | MS, Optionally SS. |
Accuracy | +/- 2% F.S.D. | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Temperature Ratings | Maximum Operating Temperature rating is 121o C for Gas services and 93o C for Liquid services. | ||||||||||||||
Repeatability | 0.5 % | ||||||||||||||
Rangebility | 10:1 | ||||||||||||||
Connections | Flanged OR Screwed OR Triclover Joint OR Hose Nipple. | ||||||||||||||
Enclosure | IP 55 OR IP 65 on request. | ||||||||||||||
Scale length | 220 mm. | ||||||||||||||
Pressure Ratings |
|
Model | KiT/ABR |
---|---|
Temperature | Max 60°C |
Pressure | Max 25 Kg/Cm² |
Available sizes | 1/8” to 100 NB |
Flow Ranges | 2 to 60,000 LPH of water at ambient temperature and 0.1 to 750 Nm³/hr of air at NTP |
End Connection | Screwed / Flanged / Hose Nipple |
Orientation | Bottom – Top / Rear – Rear |
Accuracy | ± 2% of FSD |
Accessories | High & low flow alarms and 4-20 mA output on your request.Digital on your request |

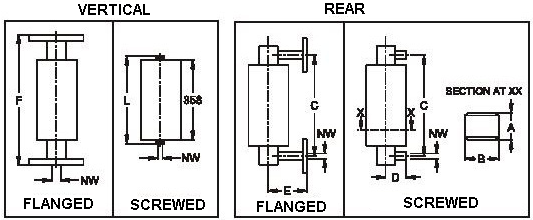

Dimentional Details
NW | F | L | C | E | D | A | B |
---|---|---|---|---|---|---|---|
15 | 500 | 400 | 440 | 90 | 55 | 95 | 90 |
20 | 500 | 400 | 440 | 90 | 60 | 95 | 90 |
25 | 500 | 400 | 440 | 115 | 65 | 120 | 115 |
40 | 500 | 400 | 500 | 125 | 70 | 140 | 140 |
50 | 500 | 450 | 500 | 150 | 70 | 155 | 160 |
80 | 500 | NA | 500 | 170 | NA | 190 | 190 |
