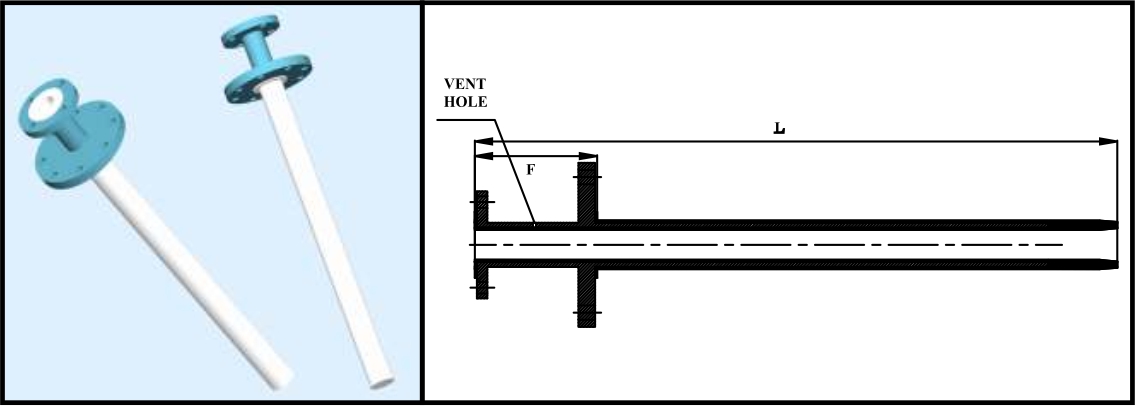

LINED DIP PIPE


Pipe Nominal Bore /Process flange Size(NB) Face to Face (F) Min. Total Length (L) Mix. PTFE Liner Thickness Pipe Schedule Vessel Flange Schedule NB Min.Inlet Nozzle ID
25 1 60 3000 2.5 40 40 600 45
40 1.5 70 3000 2.8 40 50 600 60
50 2 75 3000 3.0 40 80 600 73
80 3 85 3000 3.0 40 100 600 101
100 4 90 2800 4.5 40 150 600 130

PRODUCT FEATURES

All wetted parts PTFE Lined, giving optimum corrosion resistance

Liner Construction : Single piece, past extruded PTFE Carbon Steel construction providing good mechanical strength

OPTIONS

Flanges Fixed/Rotating, PN 10/16, BS 10, Table D/E
Liner PTFE
Extras Earthing Studs / Lugs Vent Extensions

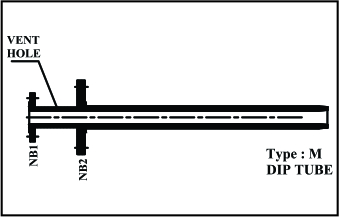

AVAILABLE DIP PIPE

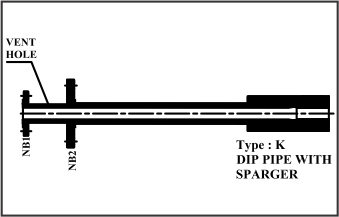

  • Lined Dip Pipe with Sparger

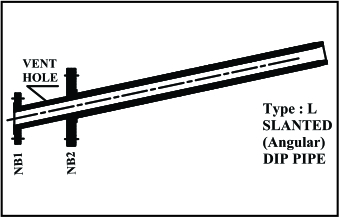

  • Lined Slanted (Angular) Dip Pipe
  • Lined ‘J’ type Dip Pipe
  • PTFE solid ‘J’ type Dip Pipe
  • Solid PTFE & PTFE Lined feed pipe for Columns

DESIGN SPECIFICATION

Flange As per ANSI B 16.5/B 16.42
Face to face As per ANSI B 16.5 # 15
Lining Thickness 3 to 5 mm
Other Flange Drilling like DIN PN 2632/2633, BS 10 Table D, E or F are also available on request

HOUSING MATERIAL

Pipe ANSI B 36.10, ASTM A 106 Gr. B schedule 4
Flanges ANSI B 16.5 ASA 150#, ASTM A 10
Liner PTFE In accordance with ASTM D 145

TEST & INSPECTION DATA

Hydraulic Test 20 kg/cm2 After Lining
Spark Test 15 KV D.C. After Lining
