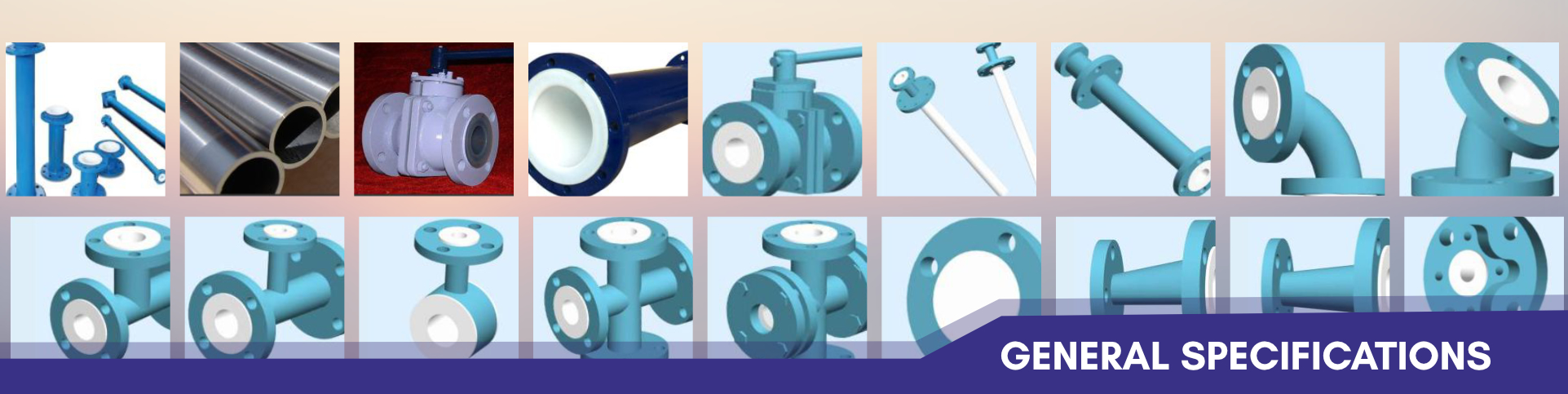

GENERAL SPECIFICATION
| Size Available | 25 NB to 300 NB |
|---|---|
| Spool Length (Max.) | 3000 mm |
| Type of end Connection | Both sides fixed or one side fixed and one side loose flange |
| Pipe Specification | Carbon Steel Seamless Pipes Confirming to ASTM A – 106 Gr. B, Sch.40 |
| Lining | PTFE Lined Extruded from Virgin PTFE Granules Thickness 3.5 mm for pipe lines up to 50 NB 4.5 - 5 mm for pipe lines 80 NB up to 200 NB 6 mm for pipes 200 NB up to 300 NB Lining Tolerance: ± 1.0 mm |
| Earthing Provision | On request |
| Size Available | 25 NB to 300 NB |
|---|---|
| Length of spacer | 25 mm to 60 mm |
| Spacer Specifications | CS Plate Flanges as per ASTM A- 105 |
| Liner | PTFE conforming to ASTM: D - 1457, Type-III, Class-2 / ASTM: D-4895,Type-I GR III Class C |
| Lining | PTFE Lined Extruded from Virgin PTFE Granules Thickness 3.5 mm for pipe lines up to 50 NB 4.5 - 5 mm for pipe lines 80 NB up to 200 NB 6 mm for pipes 200 NB up to 300 NB Lining Tolerance : ± 1.0 mm |
| Size Available | 25 NB to 300 NB |
|---|---|
| Length of spacer | 05 mm to 25 mm |
| Spacer Specifications | PTFE – Extruded Bush or Moulded Bush Conforming to ASTM: D-1457 |
| Liner | PTFE conforming to ASTM: D 1457, Type-III, Class-2 / ASTM: D-4895,Type-I GR III Class C |
| Lining | PTFE Lined Extruded from Virgin PTFE Granules Thickness 3.5 mm for pipe lines up to 50 NB 4.5 - 5 mm for pipe lines 80 NB up to 200 NB 6 mm for pipes 200 NB up to 300 NB Lining Tolerance : ± 1.0 mm |
| Size Available | 25 NB to 300 NB |
|---|---|
| Standard Degrees | 90 and 45 |
| Type of end Connection | Both sides fixed flanges |
| Earthing Provision | On request |
| Material | Formed and Fabricated from CS Seamless pipe ASTM A-106 Gr.B, Sch. 40.Flanges made from IS 2062 plates and dimensions as per ANSI B 16.5 Class 150# |
| Lining | PTFE Lined Extruded from Virgin PTFE Granules Thickness 3.5 mm for pipe lines up to 50 NB 4.5 - 5 mm for pipe lines 80 NB up to 150 NB Lining Tolerance: ± 1.0 mm. Moulded FEP/PFA for sizes from 200 NB and above 3-4 mm thick. |
| Size Available | 25 NB to 300 NB |
|---|---|
| Type of end Connection | Fixed flange |
| Earthing Provision | Both sides fixed flanges |
| Material | Sizes upto 150 NB SG Iron Casting As per IS 1865:1991 Gr. 400/15 and ASTM A-395. 200 NB to 300 NB fabricated from pipe & flanges from plate |
| Lining | FEP / PFA Moulded 4 mm thick with a tolerance of ± 1.0 mm |
| Size Available | 25 NB to 300 NB |
|---|---|
| Type of end Connection | Fixed flange |
| Earthing Provision | On request |
| Material | Upto 150 NB reducers SG Iron Casting as per IS 1865 : 1991 Gr. 400/15. 200 NB to 300 NB fabricated from pipe & flanges from IBR plate conforming to IS 2062 and dimensions as per ANSI B 16.5 CLASS 150# |
| Lining | FEP / PFA Moulded 4 mm thick with a tolerance of ± 1.0 mm |
| Size Available | 25 NB to 300 NB |
|---|---|
| Earthing Provision | On request |
| Material | Upto 150 NB reducing flange SG Iron Casting as per IS 1865 : 1991 Gr. 400/15. 200 NB to 300 NB fabricated from pipe & flanges from IBR plate conforming to IS 2062 and dimensions as per ANSI B 16.5 CLASS 150 |
| Lining | FEP / PFA Moulded 4 mm thick with a tolerance of ± 1.0 mm |
| Size Available | 25 NB to 300 NB F/F: 51 mm and 40 NB to 200 NB F/F: 76 mm |
|---|---|
| Earthing Provision | On request |
| End Connection | Flanges as per ANSI 150# |
| Material | Upto 150 NB Instrument Tee SG Iron Casting as per IS 1865 : 1991 Gr. 400/15. 200 NB to 300 NB fabricated from pipe & flanges from IBR plate conforming to IS 2062 and dimensions as per ANSI B 16.5 CLASS 150# |
| Lining | FEP / PFA Moulded 4 mm thick with a tolerance of ± 1.0 mm |
| Size Available | 25 NB to 300 NB |
|---|---|
| Earthing Provision | On request |
| Material | Upto 150 NB Blind flange SG Iron Casting as per IS 1865:1991 Gr.400/15. 200 NB to 300 NB fabricated from pipe & flanges from IBR plate conforming to IS 2062 and dimensions as per ANSI B 16.5 CLASS 150# |
| Lining | FEP / PFA Moulded 4 mm thick with a tolerance of ± 1.0 mm |
