LINED SPOOL PIPE

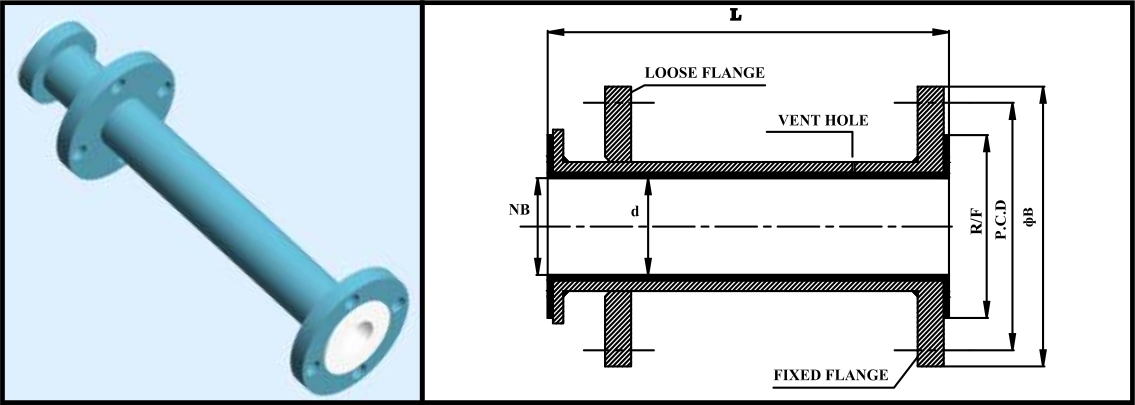

| Nominal Bore | Internal Dia. (d) | PTFE Liner Thickness (t) | FLANGE P. C. D | Flange Hole Dia. | Raised | Max.Length | Pipe Schedule | |
|---|---|---|---|---|---|---|---|---|
| mm | Inches | (± 1 mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 25 | 1 | 19.5 | 3.3 | 79.4 | 15.9 | 51 | 3000 | 40 |
| 40 | 1.5 | 33.8 | 3.3 | 98.4 | 15.9 | 73 | 3000 | 40 |
| 50 | 2 | 45.4 | 3.3 | 120.6 | 19.0 | 92 | 3000 | 40 |
| 80 | 3 | 70.8 | 3.3 | 152.4 | 19.0 | 127 | 3000 | 40 |
| 100 | 4 | 95.2 | 3.8 | 190.5 | 19.0 | 157 | 3000 | 40 |
| 150 | 6 | 145.1 | 4.5 | 241.3 | 22.2 | 216 | 3000 | 40 |
| 200 | 8 | 197.4 | 5.0 | 298.4 | 22.2 | 270 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 300 | 12 | 300.1 | 6.0 | 431.8 | 25.4 | 381 | 3000 | 30 |
PRODUCT FEATURES
All wetted parts PTFE Lined, giving optimum corrosion resistance
Liner Construction : Single piece, past extruded PTFE Carbon Steel construction providing good mechanical strength
HOUSING MATERIAL
1. Seamless Carbon Steel ASTM A 106 Gr. B.Sch-40
2. ASTM A 312 TP 304, Sch-40
2. ASTM A 312 TP 304, Sch-40
1. Made from Is 2062 Plates / ASTM A 105
2. ASTM A 351 Gr.CF8
2. ASTM A 351 Gr.CF8
PTFE In accordance with ASTM D 1457
OPTIONS
Jacketed Spool Pipe can be supplied on request
DIN PN 10 / 16, BS 10, ASME 300, Mixed
Stainless Steel
Earthing Studs / Lugs Vent Extensions
NOTE
Special heavy duty PTFE Liners available for full vacuum. Details can be provided on request Other flanges drilling likeDIN 2632 / 2633, BS 10 Table D, E o F are also available on request. Tolerance: ± 3.5 mm (0 to 1 mtr.) and ± 5.0 mm (1 to 3 mtr.).
TEST & INSPECTION DATA
20 kg/cm2 After Lining
15 KV D.C. After Lining
