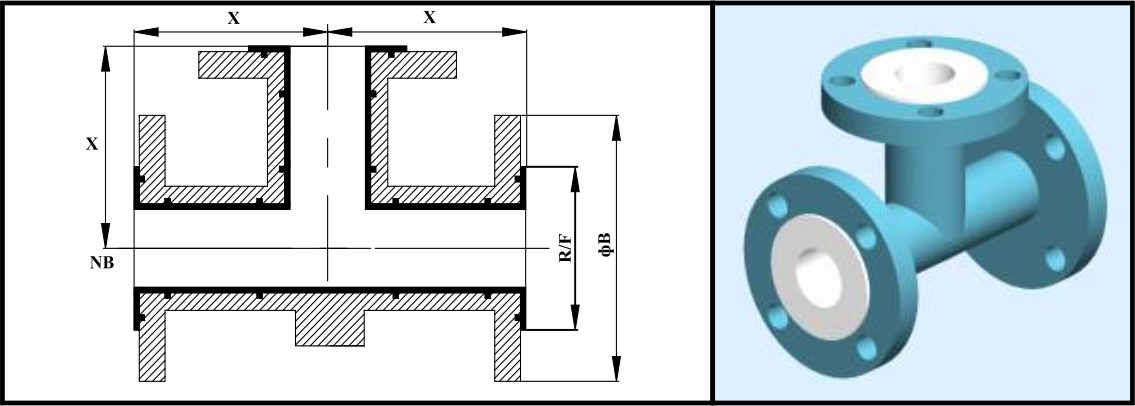

LINED EQUAL TEE
| Nominal Bore (NB) | Center Line to face (X) | Flange OD(фB) | Raised Face Dia (R/F) | Liner Thickness | Steel Thickness | |
|---|---|---|---|---|---|---|
| mm | Inches | (mm) | (mm) | (mm) | (mm) | (mm) | |
| 25 | 1 | 89 | 108.0 | 51 | 4.0 | 8.0 |
| 40 | 1.5 | 102 | 127.0 | 73 | 4.0 | 8.0 |
| 50 | 2 | 114 | 152.4 | 92 | 4.0 | 9.0 |
| 80 | 3 | 140 | 190.5 | 127 | 4.0 | 10.0 |
| 100 | 4 | 165 | 228.6 | 157 | 4.0 | 11.5 |
| 150 | 6 | 203 | 279.4 | 216 | 4.0 | 12.0 |
| 200 | 8 | 229 | 342.9 | 270 | ||
| 250 | 10 | 279 | 406.4 | 324 | Upon Request | Upon Request |
| 300 | 12 | 305 | 482.6 | 381 | ||
HOUSING MATERIAL
Made from Is 2062 Plates
Pipe as per ASTM A 106 Gr.B
SG Iron as per IS 1865-199
OPTIONS
Rotating, Fixed On/Off Center Din/PN 10/16, BS 10, ASME 300 Mixed
Stainless Steel
PFA
Earthing Studs / Lugs Vent Extensions
Non Standard Dimensions
DESIGN SPECIFICATION
As per ANSI B 16.5/B 16.4
As per ANSI B 16.5 # 15
3 to 5 mm
Other Flange Drilling like DIN 2632/2633, BS 10 Table D, E or F are also available on request Sizes above 6” are fabricated from pipe
TEST & INSPECTION DATA
20kg/cm2 After Lining
15 KV D.C. After Lining
