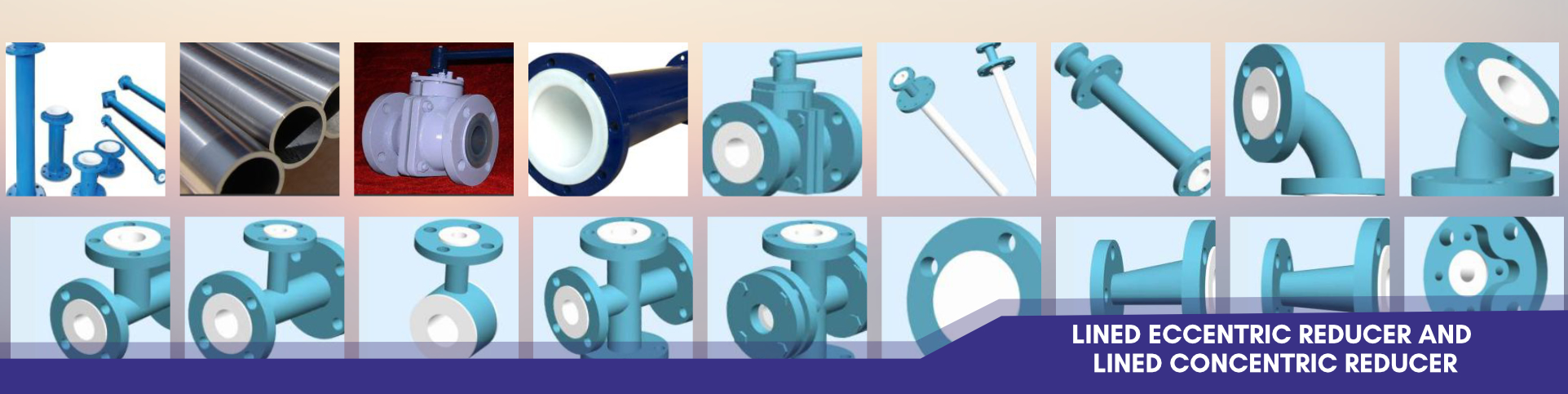

LINED ECCENTRIC REDUCER AND LINED CONCENTRIC REDUCER
| Nominal Bore (NB) | B1 | R/F1 | B2 | R/F2 | Face to Face (X) | Liner Thickness | Steel Thickness | |||
|---|---|---|---|---|---|---|---|---|---|---|
| NB1 | NB2 | |||||||||
| mm | inches | mm | inches | mm | mm | mm | mm | mm | mm | mm |
| 40 | 1.5 | 25 | 1 | 127.0 | 73 | 108.0 | 51 | 114 | 4.0 | 8.0 |
| 50 | 2 | 25 | 1 | 152.4 | 92 | 108.0 | 51 | 127 | 4.0 | 8.0 |
| 50 | 2 | 40 | 1.5 | 152.4 | 92 | 127.0 | 73 | 127 | 4.0 | 8.0 |
| 80 | 3 | 25 | 1 | 190.5 | 127 | 108.0 | 51 | 152 | 4.0 | 8.0 |
| 80 | 3 | 40 | 1.5 | 190.5 | 127 | 127.0 | 73 | 152 | 4.0 | 8.0 |
| 80 | 3 | 50 | 2 | 190.5 | 127 | 152.4 | 92 | 152 | 4.0 | 8.0 |
| 100 | 4 | 25 | 1 | 228.6 | 158 | 108.0 | 51 | 178 | 4.0 | 9.0 |
| 100 | 4 | 40 | 1.5 | 228.6 | 158 | 127.0 | 73 | 178 | 4.0 | 9.0 |
| 100 | 4 | 50 | 2 | 228.6 | 158 | 108.0 | 51 | 178 | 4.0 | 9.0 |
| 100 | 4 | 80 | 3 | 228.6 | 158 | 152.4 | 92 | 178 | 4.0 | 9.0 |
| 150 | 6 | 50 | 2 | 279.4 | 216 | 152.4 | 92 | 229 | 4.0 | 11.0 |
| 150 | 6 | 80 | 3 | 279.4 | 216 | 190.5 | 127 | 229 | 4.0 | 11.0 |
| 150 | 6 | 100 | 4 | 279.4 | 216 | 228.6 | 158 | 229 | 4.0 | 11.0 |
| 200 | 8 | 100 | 4 | 342.9 | 270 | 228.6 | 158 | 279 | ||
| 200 | 8 | 150 | 6 | 342.9 | 270 | 279.4 | 216 | 279 | ||
| 250 | 10 | 200 | 8 | 406.4 | 324 | 279.4 | 216 | 305 | ||
| 250 | 10 | 200 | 8 | 406.4 | 324 | 342.9 | 270 | 305 | ||
| 300 | 12 | 250 | 10 | 482.6 | 381 | 342.9 | 270 | 356 | ||
| 300 | 12 | 250 | 10 | 482.6 | 381 | 406.4 | 324 | 356 | ||
HOUSING MATERIAL
Made from Is 2062 Plates
ASTM A 234 Grade WPB
SG Iron as per IS 1865-1991 Grade 400/15
FEP
OPTIONS
Rotating, DIN PN 10/16, BS 10,ASME 300 Mixed
Stainless Steel
PFA
Earthing Studs/Lugs Vent Extensions
Non Standard Dimensions
DESIGN SPECIFICATION
As per ANSI B 16.5/B 16.42
As per ANSI B 16.5 # 150
3 to 5 mm
Other Flange Drilling like DIN PN 2632/2633, BS 10 Table D, E or F are also available on request
TEST & INSPECTION DATA
20 kg/cm2 After Lining
15 KV D.C. After Lining
